Berlin bobbinwound sand filters

For years Customers have been relying on Berlin (formerly Servaqua) sand filters, proving the safety and reliability of its features. For more than two decades, the Berlin filter has provided efficient filtering in all kinds of private pools worldwide.
The bobbinwound finish is extra-sturdy and the blue satin colour makes it much more attractive than other filters. Berlin filters are available in diameters from 500 mm to 1200 mm, and therefore can be installed in large private pools.

Note: Operating pressure of 4 kg/cm2 available by special order.

Availability: In Stock

Categories: Filter, Swimming Pool EquipmentTags: Filter

Description
Reviews (0)

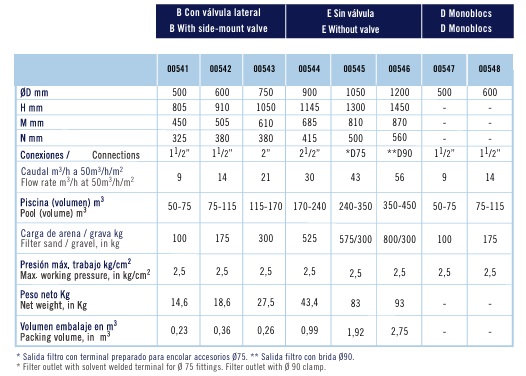

Characteristics:

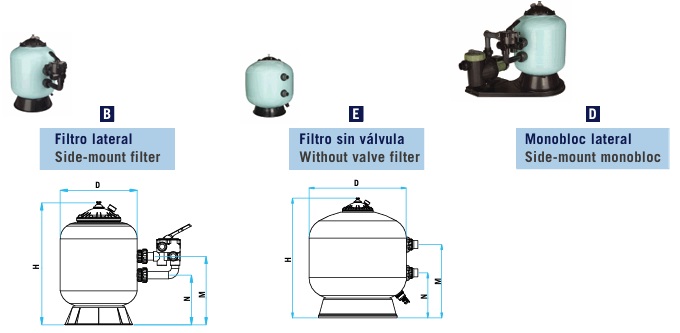

Side-mount, 6+1 way selector valve for filter, backwash, rinse, recirculate, waste and closed, except for models of Ø 500, Ø 600 and Ø 750.
Maximum flow rate: 50 m3/h/m2.
Maximum operating pressure: 2,5 kg/cm2.

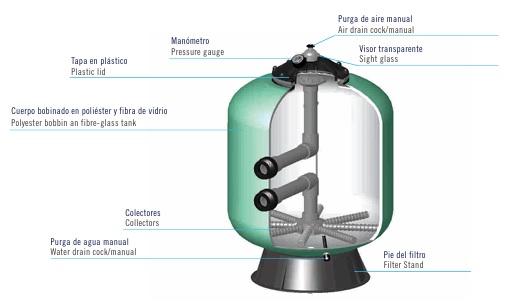

Inner coating of HDPE (polyethylene), blown for Ø 500 and Ø 600mm, thermoformed ABS for Ø 750 and Ø 900 mm, and polyester/fiberglass for Ø 1050 and Ø 1200 mm.
Filter base manufactured in plastic with diameter up to 750 mm and polyester and fiberglass for larger diameters.

Improved finish
Apart from its bobbinwound finish, which provides greater resistance and safety, the blue satin-finish distinguishes it from conventional filters.

Easy access
Owing to the larger diameter of the top manhole (400mm) for filters of diameter 1050 mm and 1200 mm, the filter interior can be more easily accessed for servicing.

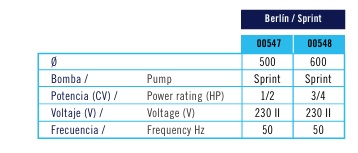

Berlin / Sprint monoblocs
Berlin filters of diameter 500 and 600mm are available in monobloc composed of a polypropylene base, filter with side-mount selector valve, self priming Sprint pump and all the necessary fittings.

Characteristics:
